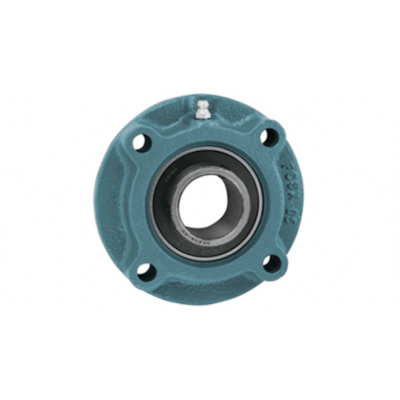

UCFCS211
Price $ 26.72
| Part Number | UCFCS211 |
Brand: LILY  |
Interchangeable With: AMI |
| System of Measurement | Metric |
| Bearing Part Number | UC211 |
| Housing Part Number | FCSX10 |
| Product Series | UCFCS200 |
| Bearing Type | Ball Bearing |
| Mounted Type | Flange Bearing |
| Inner Ring Type | Wide Inner Ring |
| Bearing Seal Type | Double Sealed |
| Shaft Mount Type | Set Screw Locking |
| Lubrication Fitting Tap | 1/8 27 NPT |
| Bore Dia | 55 mm |
| Bore Dia Tolerance | -0.0005" to 0" |
| Bearing Width | 55.6 mm |
| Mounting Bolt Size | M12 |
| Whole Length | 162 mm |
| Pillow Height | 25 mm |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 5.99 lb |
| e | 96.5 mm |
| f | 114.3 mm |
| J | 15.9 mm |
| k | 11 mm |
| p | 136.5 mm |
| s | 14 mm |
| Z | 40.4 mm |
