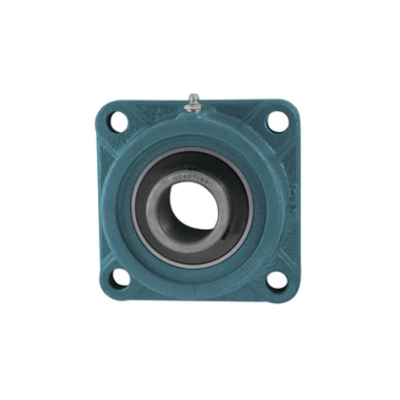

UCFU310
Price $ 50.34
| Part Number | UCFU310 |
Brand: LILY  |
Interchangeable With: AMI |
| System of Measurement | Metric |
| Bearing Part Number | UC310 |
| Housing Part Number | F-U310 |
| Product Series | UCFU300 |
| Bearing Type | Ball Bearing |
| Mounted Type | Flange Bearing |
| Inner Ring Type | Wide Inner Ring |
| Bearing Seal Type | Double Sealed |
| Shaft Mount Type | Set Screw Locking |
| Lubrication Fitting Tap | 1/8 27 NPT |
| Bore Dia | 50 mm |
| Bore Dia Tolerance | -0.0005" to 0" |
| Bearing Width | 61 mm |
| Mounting Bolt Size | M16 |
| Whole Length | 165 mm |
| Pillow Height | 17.5 mm |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 12.0 lb |
| e | 130.2 mm |
| s | 19 mm |
| x | 61 mm |
| Z | 75.4 mm |
