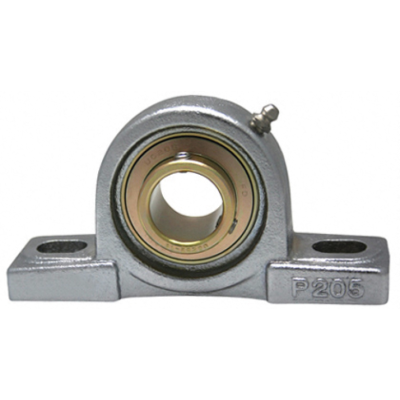

UCP205NPMZ2
Price $ 8.85
Number
| Part Number | UCP205NPMZ2 |
Brand: LILY  |
Interchangeable With: AMI |
| System of Measurement | Metric |
| Bearing Part Number | UC205MZ2 |
| Housing Part Number | P205NP |
| Product Series | UCP200NPMZ2 |
| Bearing Type | Ball Bearing |
| Mounted Type | Pillow Block Bearing |
| Inner Ring Type | Wide Inner Ring |
| Bearing Seal Type | Double Sealed |
| Shaft Mount Type | Set Screw Locking |
| Lubrication Fitting Tap | 1/4 28 UNF |
| Bore Dia | 25 mm |
| Bore Dia Tolerance | -0.0005" to 0" |
| Mounting Bolt Size | M10 |
| Center Height | 36.5 mm |
| Overall Height | 70 mm |
| Whole Length | 140 mm |
| Whole Width | 34 mm |
| Hole Ctr-to-Ctr Min | 95 mm |
| Hole Ctr-to-Ctr Max | 114 mm |
| Pillow Height | 16 mm |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 1.91 lb |
| c | 38 mm |
| n | 19 mm |
| s | 13 mm |
