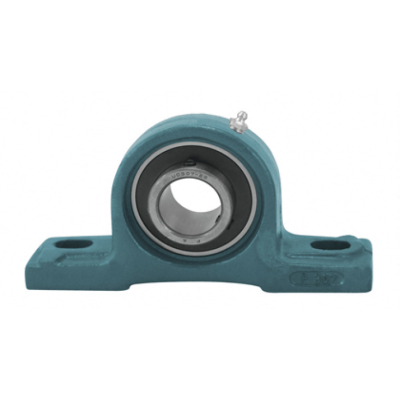

UCP320-64
Price $ 196.29
Part Number | UCP320-64 |
Brand: LILY | Interchangeable With: AMI |
System of Measurement | Inch |
Bearing Part Number | UC320-64 |
Housing Part Number | P320 |
Product Series | UCP300 |
Bearing Type | Ball Bearing |
Mounted Type | Pillow Block Bearing |
Inner Ring Type | Wide Inner Ring |
Bearing Seal Type | Double Sealed |
Shaft Mount Type | Set Screw Locking |
Lubrication Fitting Tap | 1/8 27 NPT |
Bore Dia | 4" |
Bore Dia Tolerance | -0.0005" to 0" |
Bearing Width | 4.252" |
Mounting Bolt Size | 1 1/8" |
Center Height | 5 33/64" |
Overall Height | 10 29/32" |
Whole Length | 19 5/16" |
Whole Width | 4 3/4" |
Hole Length | 1 31/32" |
Hole Width | 1 13/32" |
Hole Ctr-to-Ctr Min | 14 5/32" |
Hole Ctr-to-Ctr Max | 15 27/32" |
Pillow Height | 2 11/64" |
Bearings Material | AISI 52100 Steel |
Housing Material | Iron |
Lubrication | Required |
Temperature Range | -30° to 110 °C |
RoHS | Compliant |
REACH | Compliant |
Weight | 75.60 lb |
