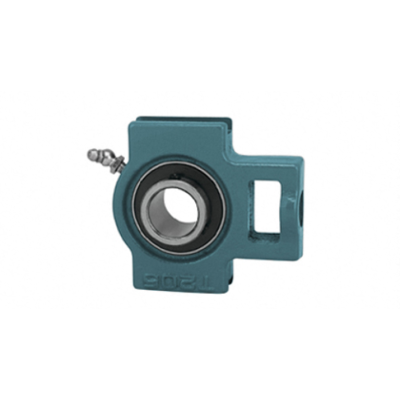

UCT209
Price $ 13.22
| Part Number | UCT209 |
Brand: LILY  |
Interchangeable With: AMI |
| System of Measurement | Metric |
| Bearing Part Number | UC209 |
| Housing Part Number | T209 |
| Product Series | UCT200 |
| Bearing Type | Ball Bearing |
| Mounted Type | Take-Up Bearing Units |
| Inner Ring Type | Wide Inner Ring |
| Bearing Seal Type | Double Sealed |
| Shaft Mount Type | Set Screw Locking |
| Lubrication Fitting Tap | 1/8 27 NPT |
| Bore Dia | 45 mm |
| Bore Dia Tolerance | -0.0005" to 0" |
| Bearing Width | 49.2 mm |
| Center Height | 87 mm |
| Overall Height | 144 mm |
| Whole Length | 117 mm |
| Whole Width | 83 mm |
| Pillow Height | 16 mm |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 5.35 lb |
| e | 102 mm |
| J | 49 mm |
| k | 16 mm |
| o | 19 mm |
| p | 83 mm |
| q | 49 mm |
| s | 29 mm |
| x | 35 mm |
| Z | 47.7 mm |
