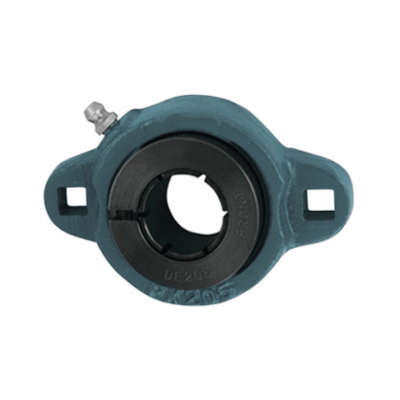

UEFX206
Price $ 15.18
| Part Number | UEFX206 |
Brand: LILY  |
Interchangeable With: AMI |
| System of Measurement | Metric |
| Bearing Part Number | UE206 |
| Housing Part Number | FX206 |
| Product Series | UEFX200 |
| Bearing Type | Ball Bearing |
| Mounted Type | Flange Bearing |
| Inner Ring Type | Wide Inner Ring |
| Bearing Seal Type | Double Sealed |
| Shaft Mount Type | Eccentric Collar Locking |
| Lubrication Fitting Tap | 1/8 27 NPT |
| Bore Dia | 30 mm |
| Bore Dia Tolerance | -0.0005" to 0" |
| Mounting Bolt Size | M10 |
| Whole Length | 113 mm |
| Whole Width | 78.6 mm |
| Pillow Height | 12 mm |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 1.58 lb |
| e | 90 mm |
| L | 39.8 mm |
| s | 10.3 mm |
| x | 22.5 mm |
| Z | 35.9 mm |
