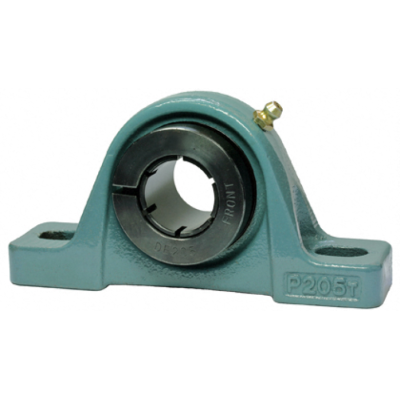

UEP212-39
Price $ 28.89
Part Number | UEP212-39 |
Brand: LILY | Interchangeable With: AMI |
System of Measurement | Inch |
Bearing Part Number | UE212-39 |
Housing Part Number | P212T |
Product Series | UEP200 |
Bearing Type | Ball Bearing |
Mounted Type | Pillow Block Bearing |
Inner Ring Type | Wide Inner Ring |
Bearing Seal Type | Double Sealed |
Shaft Mount Type | Eccentric Collar Locking |
Lubrication Fitting Tap | 1/8 27 NPT |
Bore Dia | 2 7/16" |
Bore Dia Tolerance | -0.0005" to 0" |
Mounting Bolt Size | 5/8" |
Center Height | 2 3/4" |
Overall Height | 5 7/16" |
Whole Length | 9 1/2" |
Whole Width | 2 3/4" |
Hole Length | 1" |
Hole Width | 25/32" |
Hole Ctr-to-Ctr Min | 6 7/8" |
Hole Ctr-to-Ctr Max | 7 5/8" |
Pillow Height | 1" |
Bearings Material | AISI 52100 Steel |
Housing Material | Iron |
Lubrication | Required |
Temperature Range | -30° to 110 °C |
RoHS | Compliant |
REACH | Compliant |
Weight | 11.70 lb |
Width with Concentric Collar | 2 5/8" |
