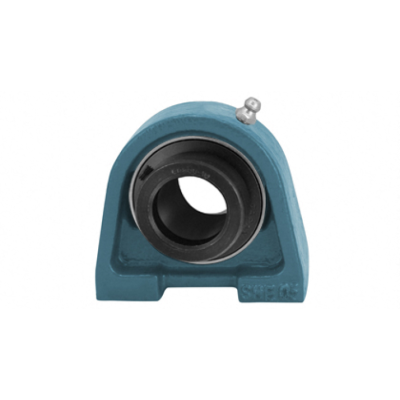

UGSHE210
Price $ 32.06
| Part Number | UGSHE210 |
Brand: LILY  |
Interchangeable With: AMI |
| System of Measurement | Metric |
| Bearing Part Number | UG210 |
| Housing Part Number | SHE10 |
| Product Series | UGSHE200 |
| Bearing Type | Ball Bearing |
| Mounted Type | Pillow Block Bearing |
| Inner Ring Type | Wide Inner Ring |
| Bearing Seal Type | Double Sealed |
| Shaft Mount Type | Eccentric Collar Locking |
| Lubrication Fitting Tap | 1/8 27 NPT |
| Bore Dia | 50 mm |
| Bore Dia Tolerance | -0.0005" to 0" |
| Center Height | 57.2 mm |
| Overall Height | 115 mm |
| Whole Length | 135 mm |
| Whole Width | 53 mm |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 5.40 lb |
| Hole Center to Center | 101.6 mm |
| Width with Eccentric Collar | 62.7 mm |
| Hole Width | 20 mm |
| Hole Length | M16 |
