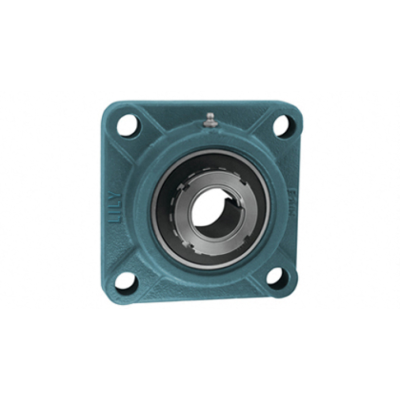

UKF319+H2319
Price $ 243.00
| Part Number | UKF319+H2319 |
Brand: LILY  |
Interchangeable With: AMI |
| System of Measurement | Metric |
| Bearing Part Number | UK319+H2319 |
| Housing Part Number | F319 |
| Product Series | UKF300+H |
| Bearing Type | Ball Bearing |
| Mounted Type | Flange Bearing |
| Inner Ring Type | Wide Inner Ring |
| Bearing Seal Type | Double Sealed |
| Shaft Mount Type | Tapered Adapter Sleeve Locking |
| Lubrication Fitting Tap | 1/8 27 NPT |
| Bore Dia | 85 mm |
| Bore Dia Tolerance | -0.0005" to 0" |
| Mounting Bolt Size | M33 |
| Whole Length | 290 mm |
| Pillow Height | 30 mm |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 46.4 lb |
| e | 228 mm |
| L | 90 mm |
| s | 35 mm |
| x | 94 mm |
| Z | 111 mm |
