Metric 18-8 Stainless SteelExtended-Tip Set Screws
57 Products

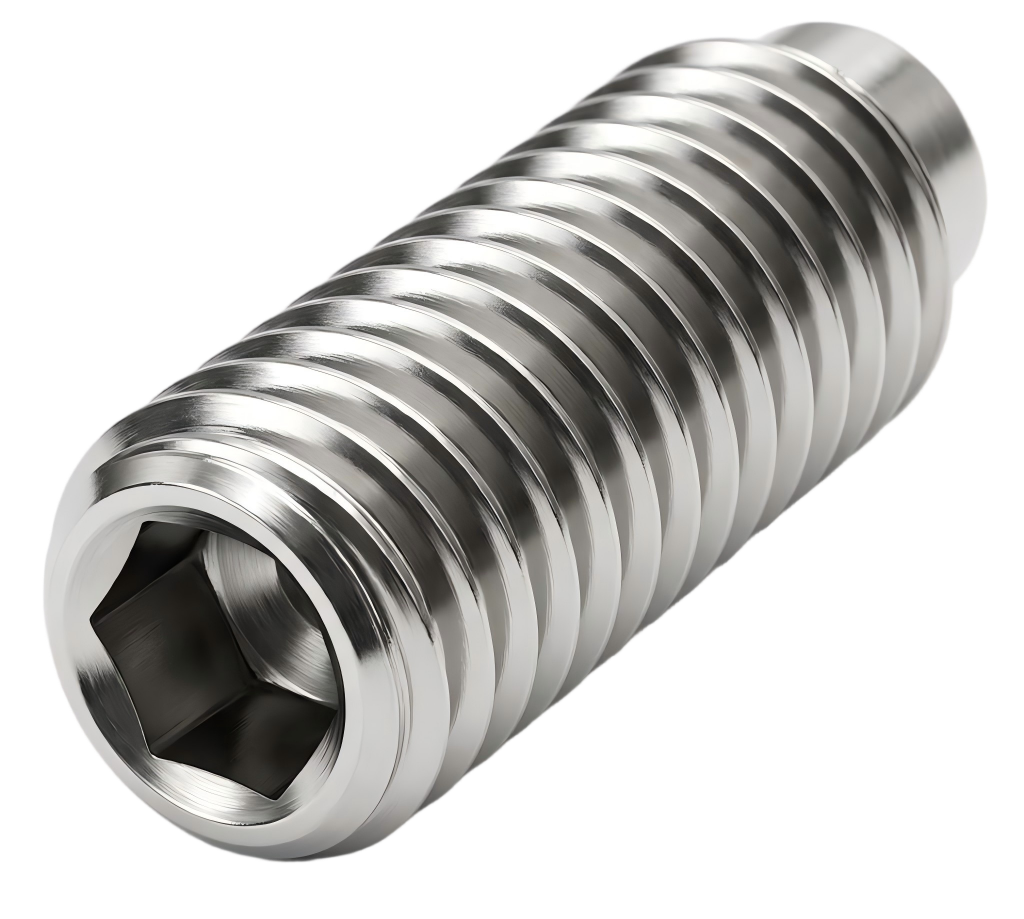

Metric 18-8 Stainless SteelExtended-Tip Set Screws
Also known as dog-point set screws, these metric set screws have a protruding tip that locks within a mating hole or slot to keep parts aligned. Made of 18-8 stainless steel, they have good chemical resistance.
Part Number
Thread
Size
Size
Length
Tip
Diameter
Diameter
Drive Size
Hardness
Material
Specifications
Met
Met
Price
JCHHFAABA
M3
3 mm
2 mm
1.5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 1.88
JCHHFABAE
M3
4 mm
2 mm
1.5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 1.83
JCHHFABAF
M3
5 mm
2 mm
1.5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 1.86
JCHHFABAG
M3
6 mm
2 mm
1.5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 3.72
JCHHFABAI
M3
8 mm
2 mm
1.5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 3.98
JCHHFABBA
M3
10 mm
2 mm
1.5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 4.69
JCHHFABBG
M4
6 mm
2.5 mm
2 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 2.60
JCHHFABBI
M4
8 mm
2.5 mm
2 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 2.60
JCHHFABCA
M4
10 mm
2.5 mm
2 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 2.60
JCHHFABCC
M4
12 mm
2.5 mm
2 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 3.64
JCHHFABCG
M4
16 mm
2.5 mm
2 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 3.64
JCHHFAGAB
M4
20 mm
2.5 mm
2 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 4.16
JCHHFABFE
M5
5 mm
3.5 mm
2.5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 1.64
JCHHFABFF
M5
6 mm
3.5 mm
2.5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 1.68
JCHHFABFH
M5
8 mm
3.5 mm
2.5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 3.18
JCHHFABFJ
M5
10 mm
3.5 mm
2.5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 2.15
JCHHFABGB
M5
12 mm
3.5 mm
2.5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 2.82
JCHHFABGF
M5
16 mm
3.5 mm
2.5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 3.64
JCHHFABGJ
M5
20 mm
3.5 mm
2.5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 3.30
JCHHFABHE
M5
25 mm
3.5 mm
2.5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 3.42
JCHHFAGAC
M5
30 mm
3.5 mm
2.5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 2.86
JCHHFACBA
M6
6 mm
4 mm
3 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 2.28
JCHHFACBC
M6
8 mm
4 mm
3 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 6.02
JCHHFACBE
M6
10 mm
4 mm
3 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 5.18
JCHHFACBG
M6
12 mm
4 mm
3 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 3.09
JCHHFACBI
M6
16 mm
4 mm
3 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 4.22
JCHHFACCD
M6
20 mm
4 mm
3 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 3.10
JCHHFACCI
M6
25 mm
4 mm
3 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 4.06
JCHHFAGAD
M6
30 mm
4 mm
3 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 2.71
JCHHFAGAE
M6
35 mm
4 mm
3 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 4.58
JCHHFADAI
M8
8 mm
5.5 mm
4 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 4.47
JCHHFADBA
M8
10 mm
5.5 mm
4 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 5.18
JCHHFADBC
M8
12 mm
5.5 mm
4 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 4.15
JCHHFADBE
M8
16 mm
5.5 mm
4 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 7.08
JCHHFADBG
M8
20 mm
5.5 mm
4 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 4.07
JCHHFADBJ
M8
25 mm
5.5 mm
4 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 7.14
JCHHFADCE
M8
30 mm
5.5 mm
4 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 3.74
JCHHFAGAF
M8
35 mm
5.5 mm
4 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 4.69
JCHHFAGAG
M8
40 mm
5.5 mm
4 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 4.69
JCHHFAGAI
M8
50 mm
5.5 mm
4 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 6.04
JCHHFAEBA
M10
10 mm
7 mm
5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 2.92
JCHHFAEBC
M10
12 mm
7 mm
5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 4.56
JCHHFAEBE
M10
16 mm
7 mm
5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 5.70
JCHHFAEBG
M10
20 mm
7 mm
5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 9.51
JCHHFAEBI
M10
25 mm
7 mm
5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 8.68
JCHHFAGAJ
M10
30 mm
7 mm
5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 7.86
JCHHFAGBA
M10
35 mm
7 mm
5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 4.80
JCHHFAGBB
M10
40 mm
7 mm
5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 5.84
JCHHFAGBD
M10
50 mm
7 mm
5 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 1.38
JCHHFAFBC
M12
12 mm
8.5 mm
6 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 3.02
JCHHFAGBE
M12
16 mm
8.5 mm
6 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 2.60
JCHHFAGBF
M12
20 mm
8.5 mm
6 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 6.25
JCHHFAGBG
M12
25 mm
8.5 mm
6 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 7.29
JCHHFAGBH
M12
30 mm
8.5 mm
6 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 7.30
JCHHFAGBI
M12
35 mm
8.5 mm
6 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 7.92
JCHHFAGBJ
M12
40 mm
8.5 mm
6 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 8.12
JCHHFAGCB
M12
50 mm
8.5 mm
6 mm
Rockwell B80
18-8 Stainless Steel
DIN 915;ISO 4028
$ 2.76
