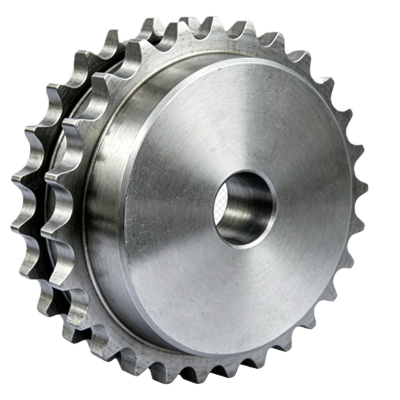

DFHBNBAG
Price $ 39.07
| Part Number | DFHBNBAG |
| System of Measurement | Metric |
| Sprocket Type | Standard |
| Bore Type | Machinable |
| For Roller Chain Strand Type | Double |
| For Roller Chain Standard | ISO |
| For Roller Chain Trade Size | 06B-2 |
| Pitch | 9.53 mm |
| Number Of Teeth | 17 |
| For Shaft Diameter | 12 mm |
| For Maximum Shaft Diameter | 24 mm |
| For Shaft Type | Round |
| ID | 12 mm |
| OD | 57.39 mm |
| Overall Width | 30 mm |
| Hub Diameter | 40 mm |
| Material | Steel |
| Specifications Met | DIN 8187, ISO 606 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
INTERCHANGE
The LILY bearing part series DFHBNBAG is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
DFHBNBAG
